Project · Lahore · 2021Raya Fairways: Parking Management, Revenue System & Self-Pay Booth Machines
How ASG Systems Pakistan, with partners Centurion and Comas, deployed a complete parking management and automated revenue collection system at Raya Fairways.
Project snapshot
Project at a glance
Overview
Executive Summary
Raya Fairways is a mixed commercial development needing a dependable way to manage vehicle parking and collect parking revenue without relying on manual, staffed toll booths at every exit. The brief called for a system that could track vehicle entry and exit, calculate fees automatically, and let drivers pay and leave quickly.
ASG Systems Pakistan was engaged as the solutions and service provider responsible for planning, supplying, and installing a parking management and revenue system across the facility, including self-pay booth machines for automated fee collection, working with technology partners Centurion for entry barriers and Comas for the parking revenue and payment technology.
The brief
The Challenge
Raya Fairways needed its parking operation to run efficiently without the overhead of a fully staffed, manual toll system at every point:
- Control vehicle entry at checkpoints without creating delays for visitors and tenants.
- Track parking duration accurately enough to calculate fees automatically, rather than relying on manual logging.
- Give drivers a fast, self-service way to pay for parking and exit without needing a staffed cashier at every lane.
- Deploy equipment reliable enough for continuous daily use across a commercial facility.
What we delivered
The Solution: Outdoor Access, Indoor Checkpoints & Self-Pay Revenue Collection
ASG Systems Pakistan designed and installed a parking management and revenue system covering the full journey from the outdoor approach to the parking structure through to payment and exit.
Component 01
Outdoor Parking Wayfinding

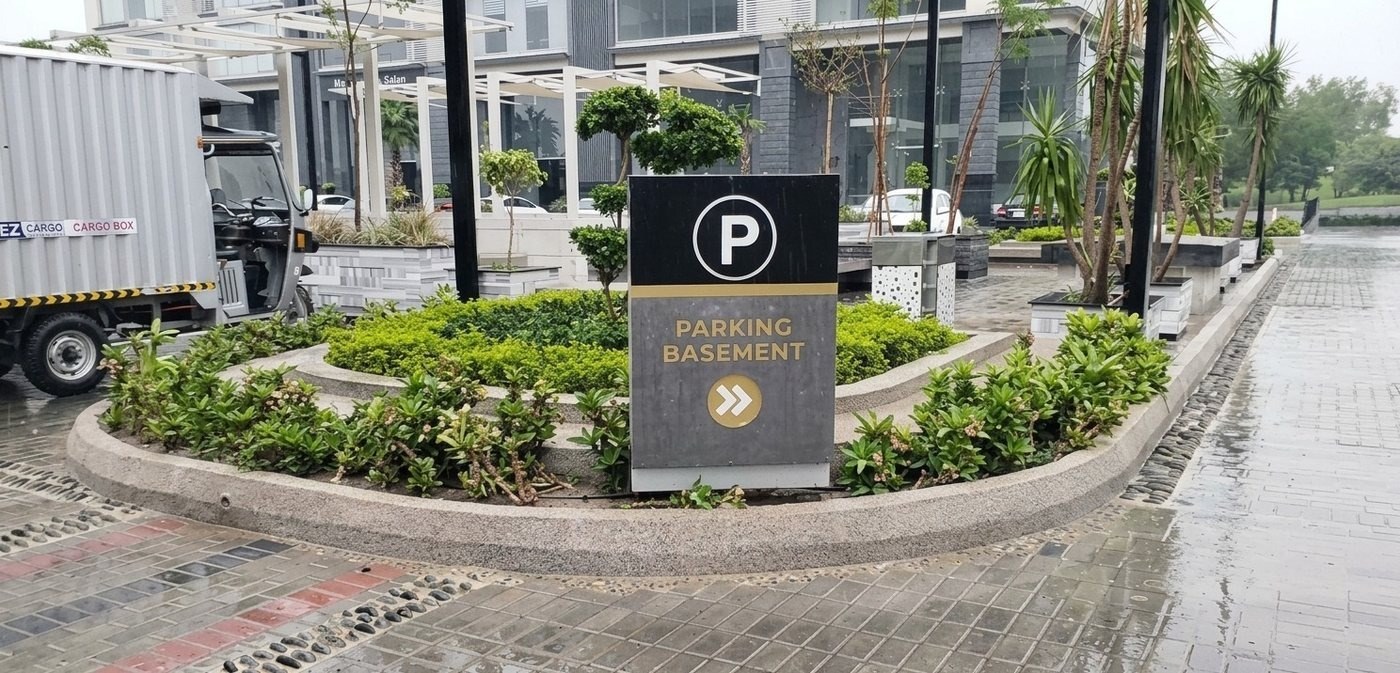

Clear outdoor signage directs drivers from the plaza toward the parking basement entrance, setting up a smooth approach to the checkpoint below.
Component 02
Entry Checkpoint & Boom Barriers

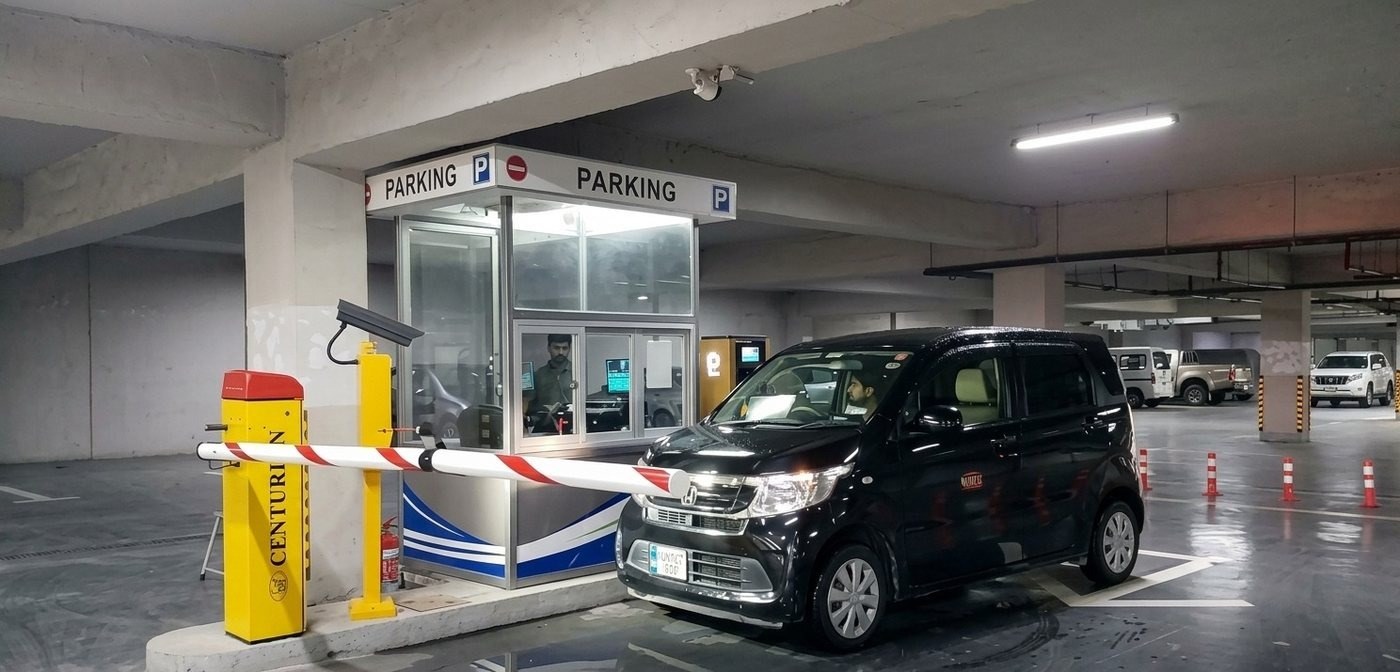

At the parking entrance, a staffed booth paired with an automatic boom barrier controls vehicle entry into the facility, logging each vehicle into the parking management system as it enters.
Component 03
Parking Structure

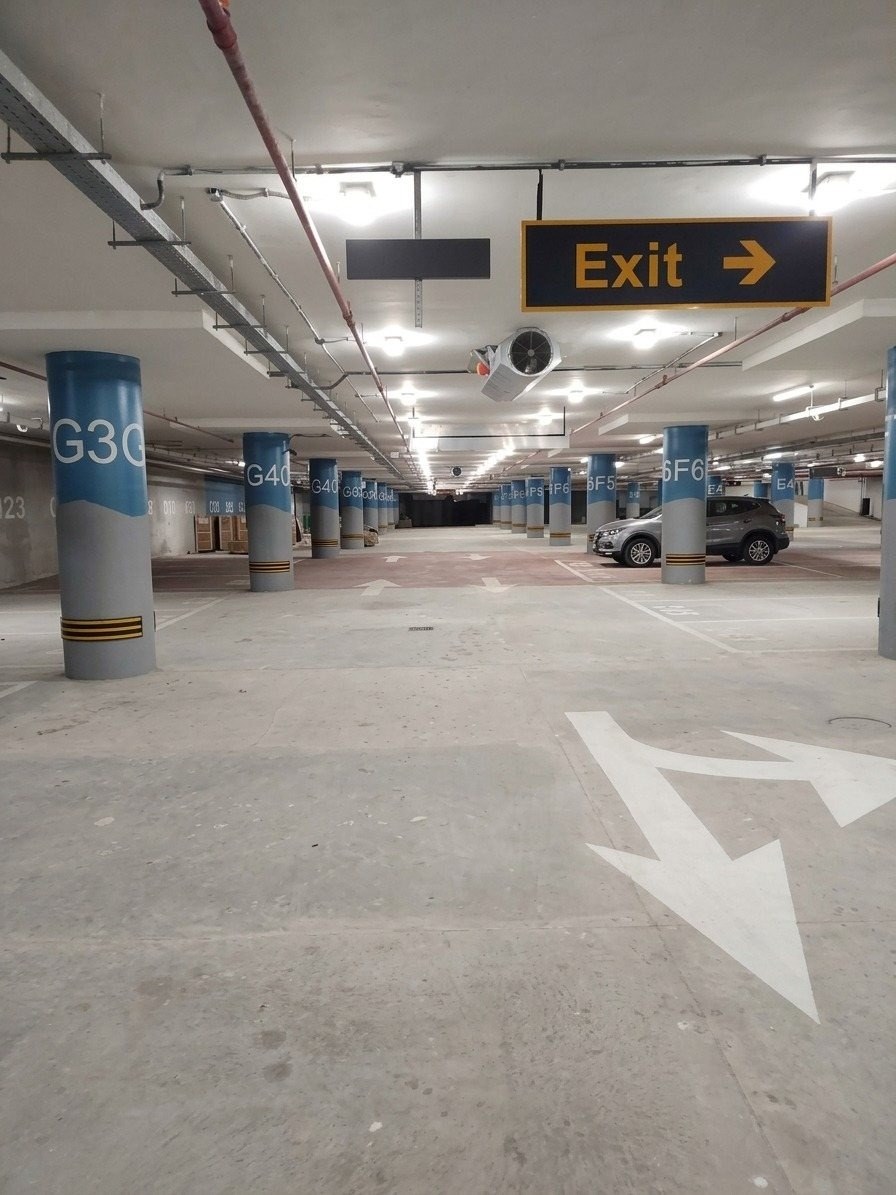

Inside, the parking structure is organized into clearly lettered and numbered zones, with illuminated exit signage guiding drivers back out once they’re ready to leave.
Component 04
Auto-Pay Stations

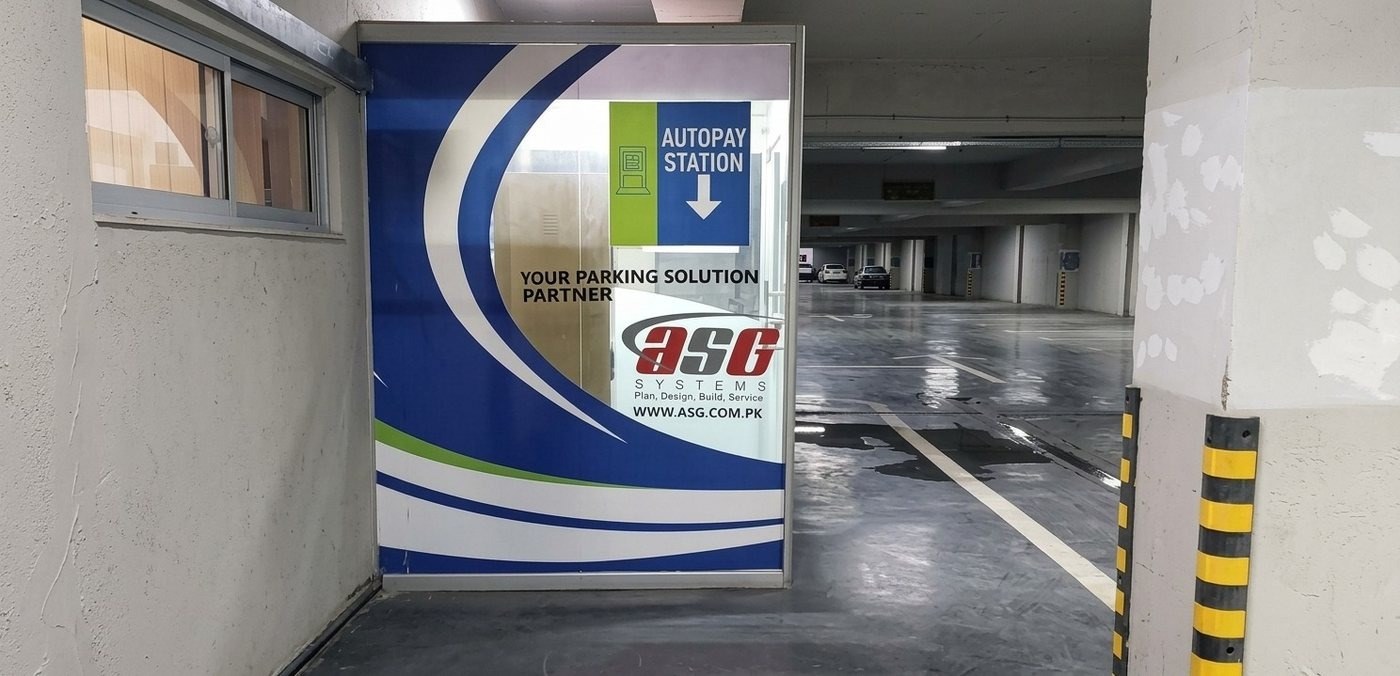

Autopay station signage directs drivers to self-service payment points throughout the facility, branded as part of ASG Systems Pakistan’s parking solution.
Component 05
Parking Revenue System & Self-Pay Booth Machines

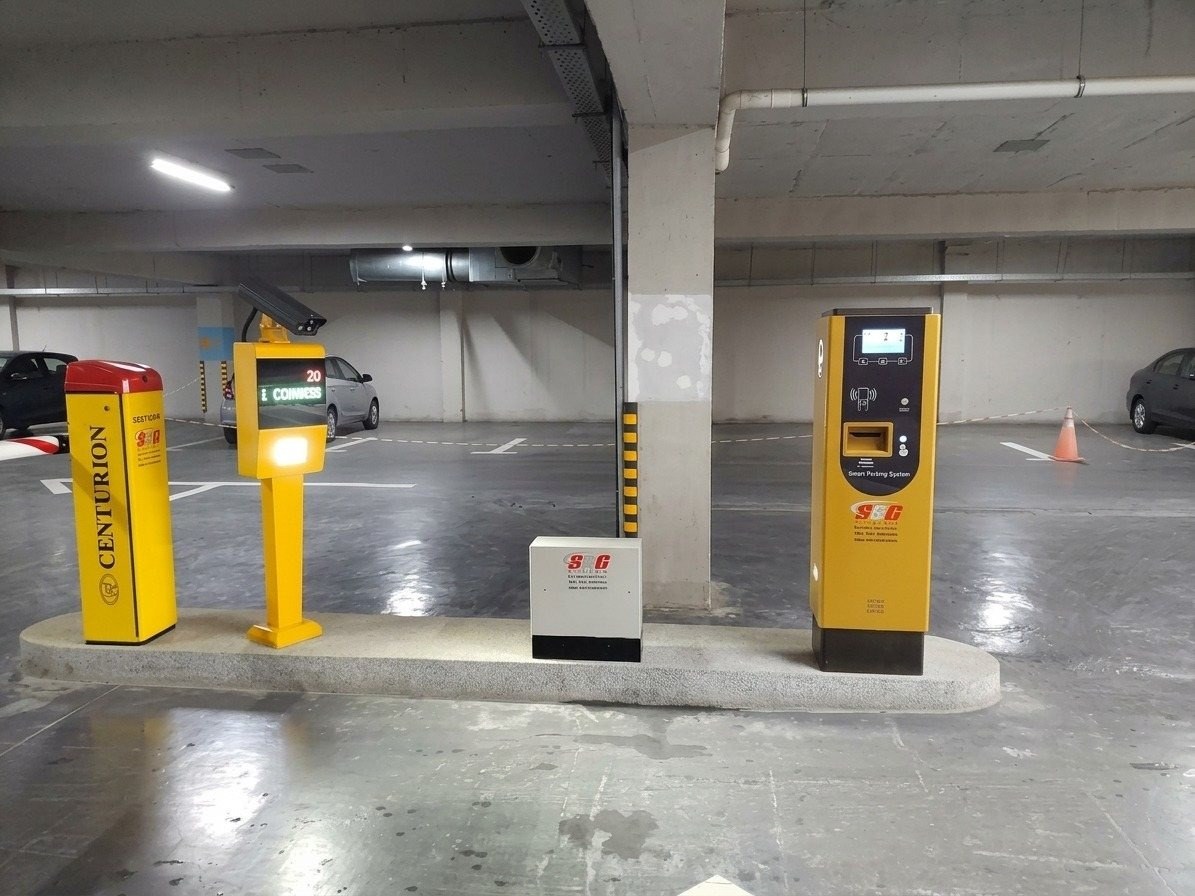

At the core of the facility is a parking revenue system supplied by Comas, paired with a Centurion boom barrier and a live occupancy counter. Drivers use the self-pay booth machine to settle their fee automatically—removing the need for a staffed cashier at every exit lane and giving the operator accurate, automated revenue tracking.
Partners
Technology Partners: Centurion & Comas
To build a dependable, end-to-end parking operation, ASG Systems Pakistan partnered with Centurion for automatic boom barriers at entry checkpoints, and with Comas for the parking revenue system and self-pay booth machines that automate fee collection across the facility.
How we did it
Implementation Approach
- 1Site survey of the parking approach, entry checkpoint, and facility layout to plan equipment placement.
- 2Procurement and staging of boom barriers through Centurion and revenue/self-pay equipment through Comas.
- 3Civil and electrical works for barrier foundations, self-pay station wiring, and occupancy counter integration.
- 4Installation, calibration, and functional testing of entry barriers, self-pay stations, and the revenue system.
- 5Coordination with Raya Fairways operations staff for a smooth handover and go-live in 2021.
Outcome
Results & Impact
The completed installation gave Raya Fairways an automated, end-to-end parking management and revenue operation:
- Controlled vehicle entry via Centurion automatic boom barriers at the checkpoint.
- Automated fee calculation and collection through the Comas parking revenue system.
- Faster, self-service exit for drivers via self-pay booth machines, reducing dependence on staffed cashier lanes.
- Accurate, trackable parking revenue for facility operators.
FAQs
Frequently Asked Questions
What parking systems did ASG Systems Pakistan install at Raya Fairways?
A complete parking management and revenue system, including Centurion automatic boom barriers at entry checkpoints and self-pay booth machines for automated fee collection, completed in 2021.
Who were the technology partners for the Raya Fairways project?
Centurion supplied the automatic boom barriers, and Comas supplied the parking revenue and self-pay station technology.
What is a self-pay booth machine in a parking management system?
It lets a driver settle their parking fee and receive exit authorization without a staffed cashier booth, speeding up exit flow and giving the operator automated, trackable revenue collection.
